Removing and installing reversing camera system control unit -J772-

–	When renewing control unit, select “Replacement” function for appropriate control unit in “Guided Fault Finding”.

To do so, use the vehicle diagnostic, testing and information system -VAS 5051-.

–	Switch off all electrical equipment.

–	Remove ignition key.

Removing

–	Remove luggage compartment side trim (left-side).

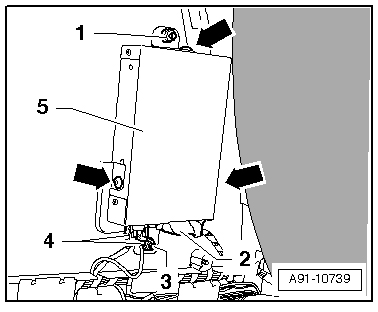

–	Unscrew nuts -1- and -3- (8 Nm).

–	Unplug connectors -2- and -4- at reversing camera system control unit -J772--5-.

–	Detach reversing camera system control unit -J772--5- with bracket.

Detaching bracket

Two retaining brackets are bolted to reversing camera system control unit -J772-.

–	Unscrew bolts -arrows- (3 Nm) and detach brackets.

Installing

–	First install brackets.

–	Install reversing camera system control unit -J772- proceeding in reverse order to the steps described for removal.

–	Perform calibration.
